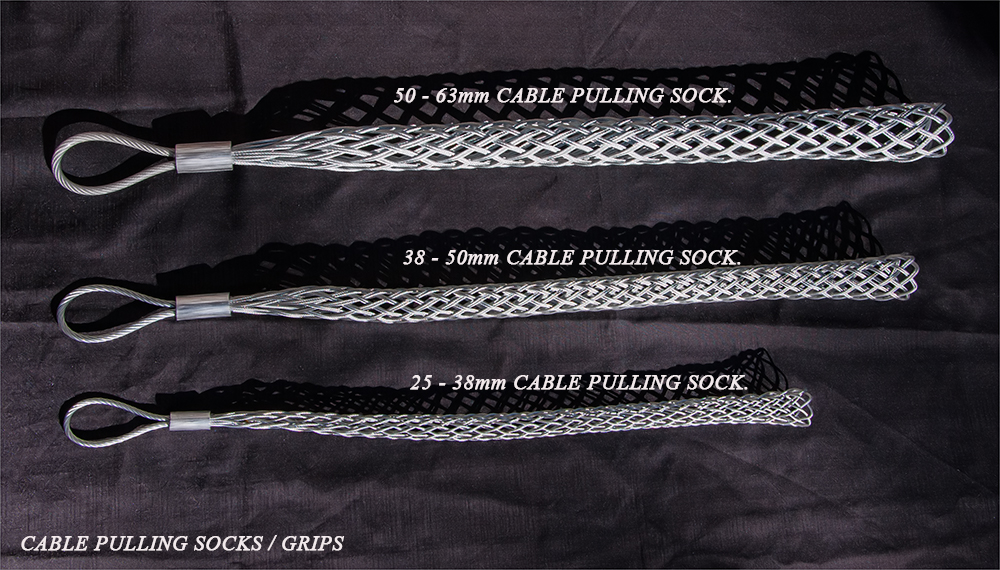

CABLE PULLING SOCKS

Cable Pulling Socks are efficient way to install and control

electrical or heavy duty cables (also known as Cable Grips),

Cable Socks/Grips can also be used to support or pull any cylindrical object within their grip and load carrying capacity. cable socks eases low and high voltage cable pulling into ducts, trenches and conduits,

Pulling Grips are indispensable in many different cable pulling

applications. Manufactured from galvanized steel wire rope that is

evenly woven in a single, double or triple wire weave according to

pulling tension requirements, grips are slipped over the outside

sheath of a cable - when pulling tension is applied, the grip contracts

applying its gripping force to the outside of the cable,

Model	Diameter range(mm)	Weave	Lattice length	Overall length	Break tones
CS-22	13 mm ~ 19 mm	Single	355 mm	430 mm	1,00 Ton
CS-23	19 mm ~ 25 mm	Single	405 mm	510 mm	2,50 Ton
CS-24	25 mm ~ 38 mm	Single	455 mm	610 mm	3,50 Ton
CS-25	38 mm ~ 50 mm	Double	535 mm	735 mm	5,00 Ton
CS-26	50 mm ~ 63 mm	Double	610 mm	865 mm	5,00 Ton
CS-27	63 mm ~ 89 mm	Double	685 mm	990 mm	6,00 Ton
CS-28	89 mm ~ 115 mm	Double	685 mm	990 mm	7,00 Ton
CS-29	115 mm ~ 130 mm	Double	685 mm	990 mm	7,00 Ton
CS-30	130 mm ~ 150 mm	Double	800 mm	1200 mm	7,00 Ton
CS-31	150 mm ~ 160 mm	Double	800 mm	1900 mm	7,00 Ton
